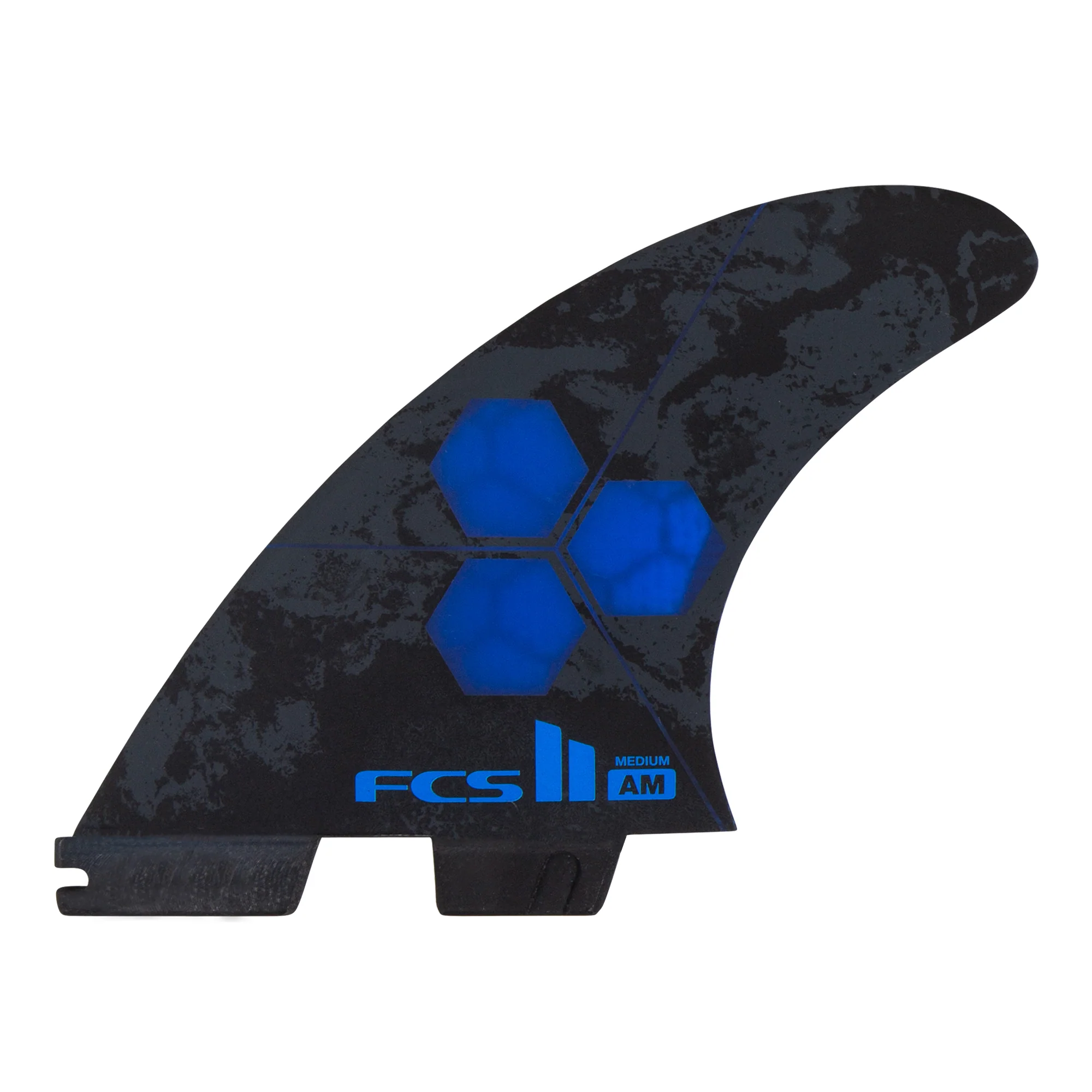

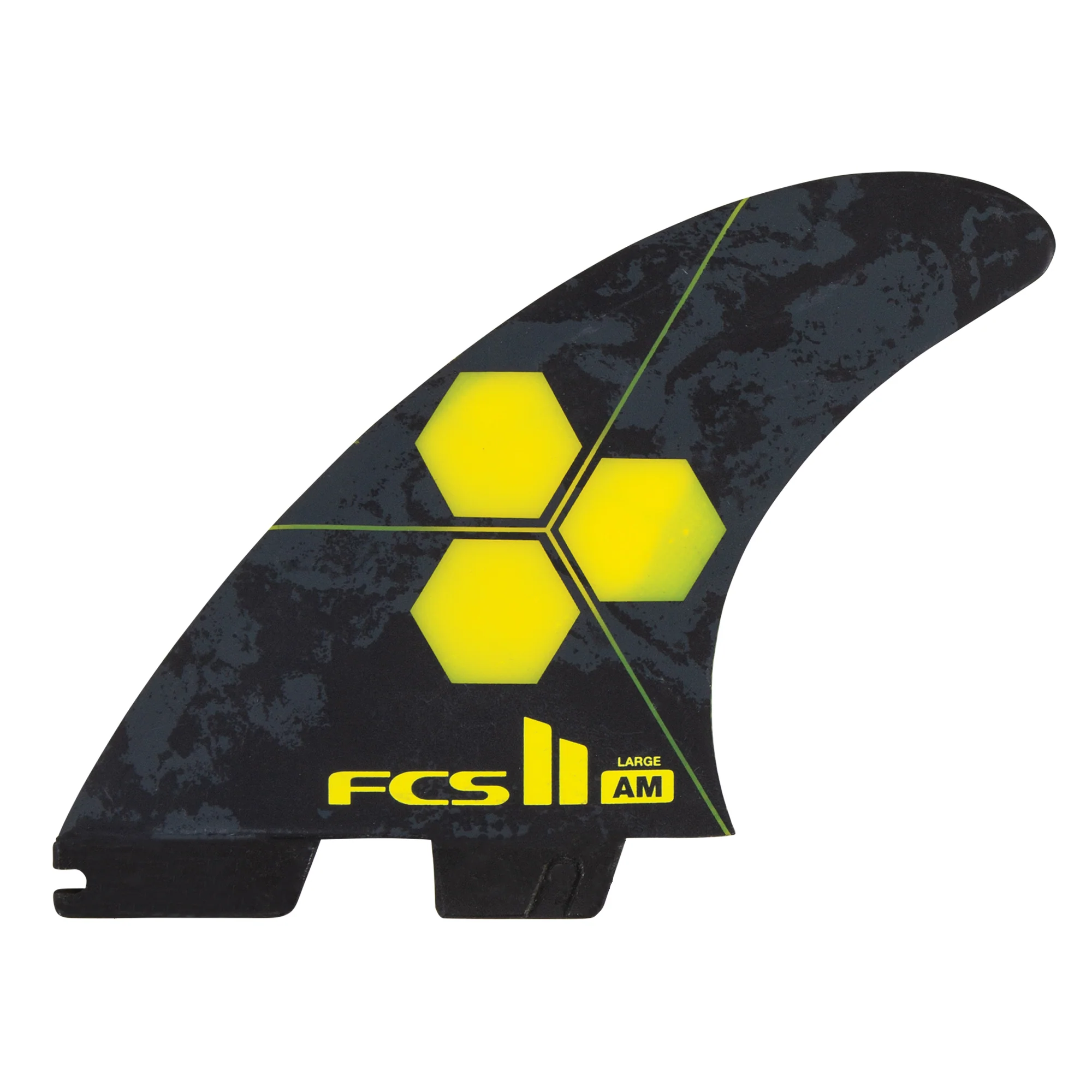

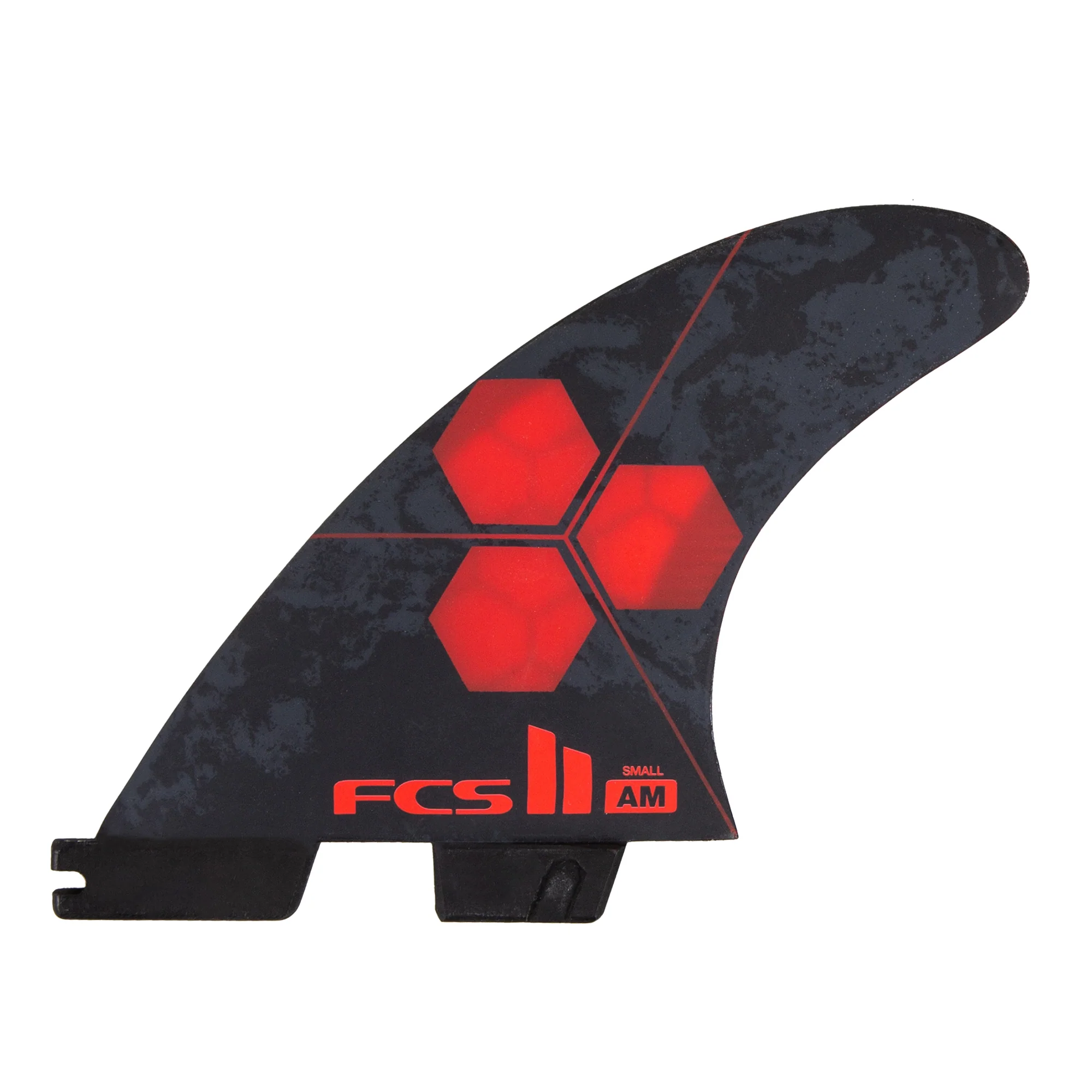

Al Merrick's 'AM' Performance Core shaper fin. Raked side fins produce exceptional speed and drive.

Free shipping on this item

• Performance
• Material
• Size

• Overview

  • Al Merrick's template is designed for radical, progressive surfing.
  • The raked side fins produce exceptional speed and drive, while the smaller centre fin on the medium and large templates offer quick release through turns.




  Ideal Conditions

  • Hollow steep waves, punchy beach breaks.




  Board Types

  • Designed to fit the FCS II Fin System.
  • Performance boards with deep concaves and moderate-to-extreme rocker.




  Fin Family

  • Carver: Find Power. Powerful, drawn-out turns with added hold.






• Performance Core

  Performance Core (PC) fins are made using a multi-layered resin transfer molding process. The flex pattern in PC fins extends progressively from the base through to the tip, helping the surfer to maintain drive and hold through a turn. This versatile fin material is light, and can be used in a variety of different conditions.




• X-SMALL (Under 55Kg / 120 Lbs)
  SMALL (55Kg - 70Kg / 120 - 155 Lbs)
  MEDIUM (65Kg - 80Kg / 145 - 175 Lbs)
  LARGE (75Kg - 90Kg / 165 - 200 Lbs)
  X-LARGE (Over 85Kg / 190 Lbs)


  Fin	Base (inches)	Base (mm)	Depth (inches)	Depth (mm)	Area (inches)	Area  (mm)	Sweep Deg°	Foil
  XS	4.26	108.1	4.26	108.0	13.02	8400	35.5°	Flat
  SML	4.37	111.0	4.37	111.0	13.71	8846	35.5°	Flat
  MED (Side)	4.57	116.0	4.53	115.0	14.89	9608	36.6°	Flat
  MED (Ctr)	4.33	110.0	4.41	112.0	13.72	8852	35.0°	50/50
  LRG (side)	4.61	117.1	4.69	119.0	15.63	10083	36.3°	Flat
  LRG (Ctr)	4.47	113.5	4.45	113.0	14.68	9469	38.6°	50/50
  XL (Side)	4.80	121.77	4.85	123.0	16.50	10645	36.3°	Flat
  XL (Ctr)	4.70	119.20	4.61	117.06	16.05	10354	38.6°	50/50

  View the FCS Fin Data page for Base/Depth/Area/Foil information.



•
